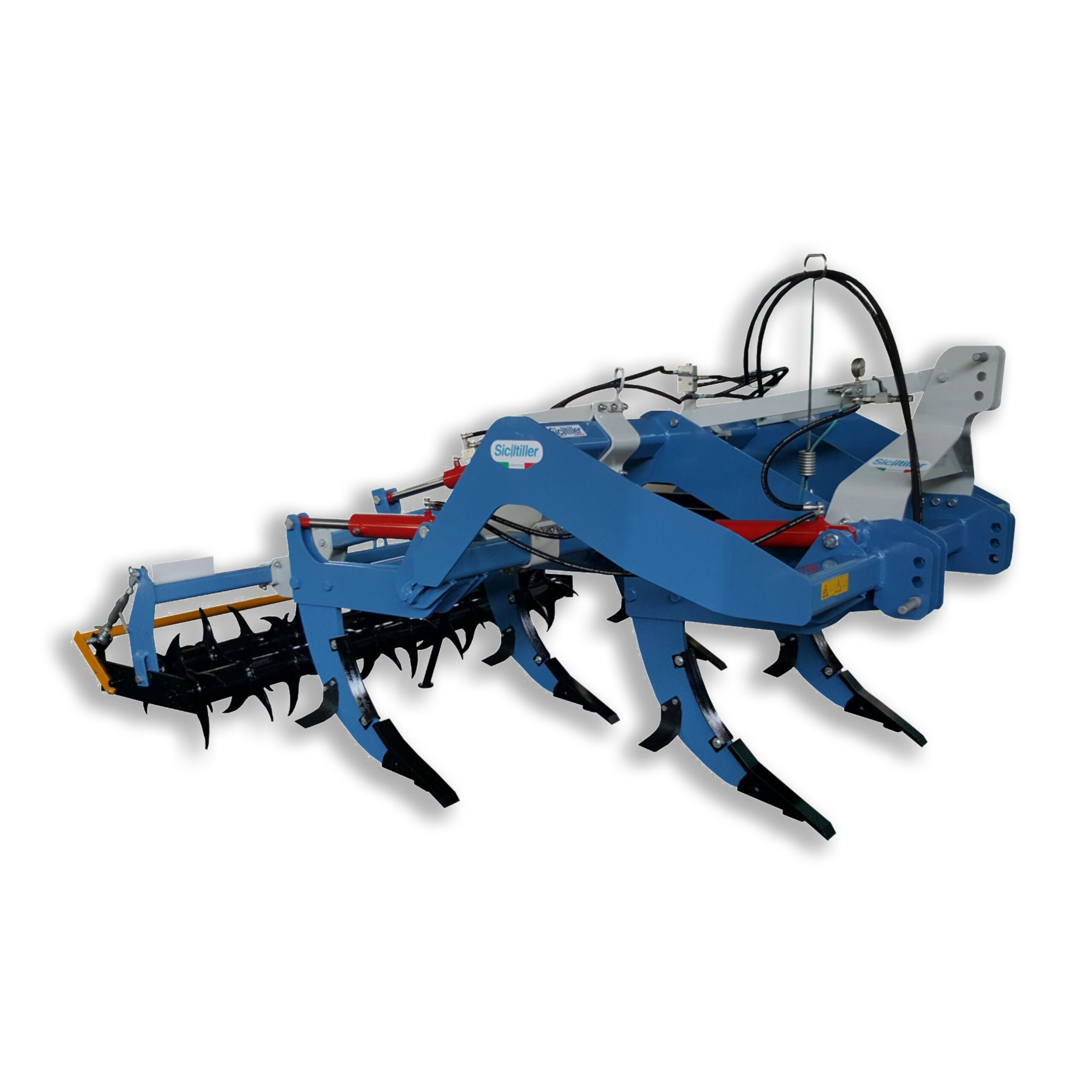

DIL 65

(Hydraulic Security System)

The carried subsoiler with a no-stop hydraulic anchor safety system, DIL series, is designed to work deep into the soil, breaking up compactions without interrupting progress, even in the presence of obstacles. Thanks to the no-stop hydraulic system, the anchors lift automatically when they encounter resistance, ensuring continuity of work. Anchor pressure is adjustable, allowing the implement to be adapted to ground conditions. The safety bolt protects the equipment from more serious damage in case of impacts. It also features hydraulic extension tilting, which facilitates maneuverability and transport. Availability in DIL 30 versions – with working depth 30 cm., suitable for tractors from 70 to 180 HP; DIL 35 – with working depth 35 cm., suitable for tractors from 50 to 200 HP; DIL 45 – with working depth 45 cm., suitable for tractors from 70 to 200 HP; DIL 65 – with working depth 65 cm., for tractors from 90 to 260 HP.

Data sheet

Code. Power HP Type Teeth Frame Height Cm Prof. Cm Larg. Frame Cm Weight Kg
80020 90-120 DIL65/3 3 95 65 180 1000
80021 120-180 DIL65/5 5 95 65 250 1275
80055 120-180 DIL65/5L 5 95 65 300 1310
80022 160-200 DIL65/7 7 95 65 300 1600
80024 160-200 DIL65/7L 7 95 65 350 1700
80056 160-200 DIL65/7SI 5+2 95 65 220+80 1850
80025 160-200 DIL65/7SIL 5+2 95 65 250+100 1900
YES = HYDRAULIC TIPPING OF EXTENSIONS.

Product Description.

The carried subsoiler with a no-stop hydraulic anchor safety system, DIL series, is designed to work deep into the soil, breaking up compactions without interrupting progress, even in the presence of obstacles. Thanks to the no-stop hydraulic system, the anchors lift automatically when they encounter resistance, ensuring continuity of work. Anchor pressure is adjustable, allowing the implement to be adapted to ground conditions. The safety bolt protects the equipment from more serious damage in case of impacts. It also features hydraulic extension tilting, which facilitates maneuverability and transport. Availability in DIL 30 versions – with working depth 30 cm., suitable for tractors from 70 to 180 HP; DIL 35 – with working depth 35 cm., suitable for tractors from 50 to 200 HP; DIL 45 – with working depth 45 cm., suitable for tractors from 70 to 200 HP; DIL 65 – with working depth 65 cm., for tractors from 90 to 260 HP.
