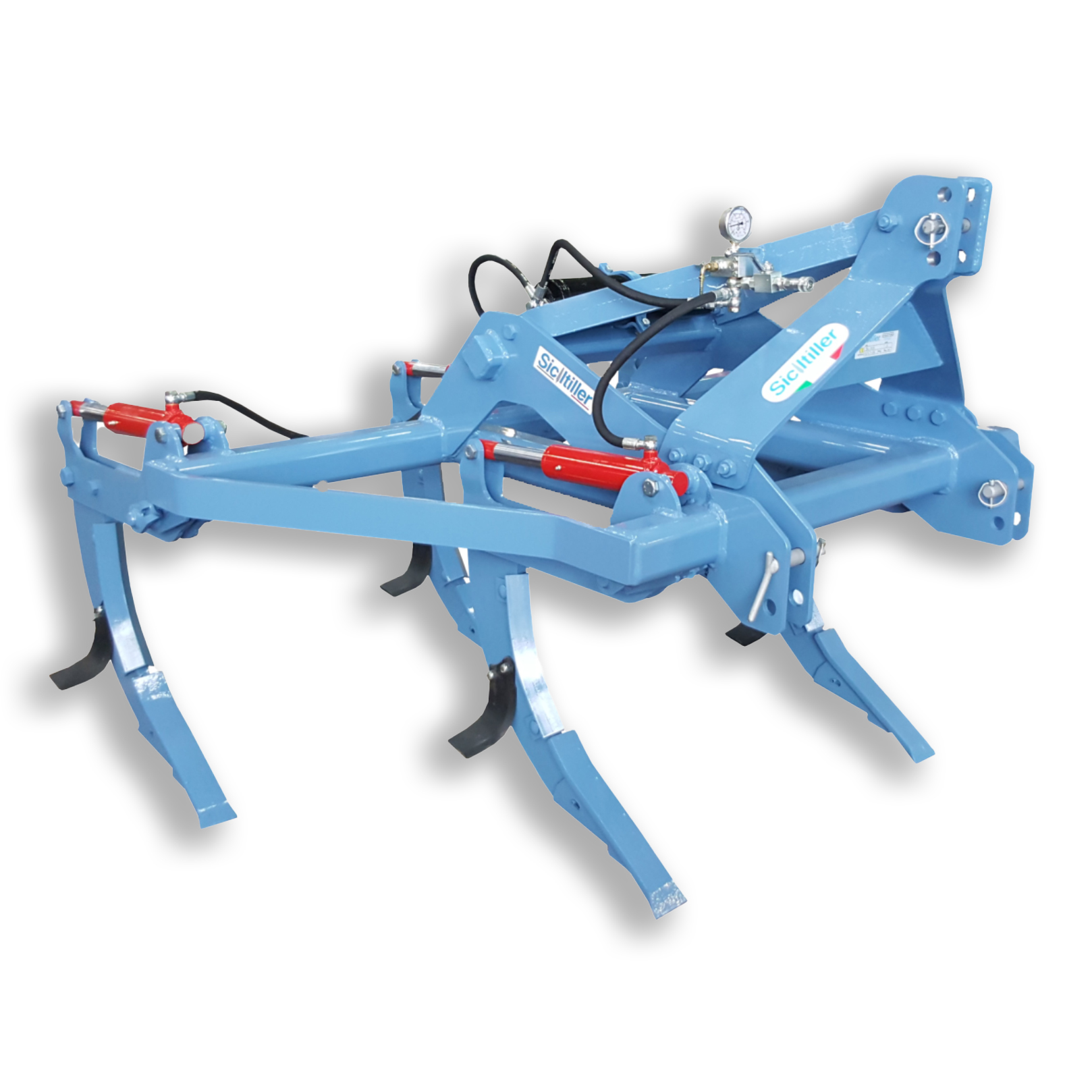

DIL 35

(Hydraulic Security System)

The carried subsoiler with a no-stop hydraulic anchor safety system, DIL series, is designed to work deep into the soil, breaking up compactions without interrupting progress, even in the presence of obstacles. Thanks to the no-stop hydraulic system, the anchors lift automatically when they encounter resistance, ensuring continuity of work. Anchor pressure is adjustable, allowing the implement to be adapted to ground conditions. The safety bolt protects the equipment from more serious damage in case of impacts. It also features hydraulic extension tilting, which facilitates maneuverability and transport. Availability in DIL 30 versions – with working depth 30 cm., suitable for tractors from 70 to 180 HP; DIL 35 – with working depth 35 cm., suitable for tractors from 50 to 200 HP; DIL 45 – with working depth 45 cm., suitable for tractors from 70 to 200 HP; DIL 65 – with working depth 65 cm., for tractors from 90 to 260 HP.

Data sheet

Code. Power HP Type Teeth Frame Height Cm Prof. Cm Larg. Frame Cm Weight Kg
80001 50-70 DIL35/3 3 73 35 130 480
80002 70-90 DIL35/5 5 73 35 200 600
80052 70-90 DIL35/5L 5 73 35 250 630
80004 90-120 DIL35/7 7 73 35 250 790
80053 90-120 DIL35/7L 7 73 35 300 820
80006 90-120 DIL35/7S 5+2 73 35 200+45 840
80007 90-120 DIL35/7SI 5+2 73 35 200+50 940
80008 90-120 DIL35/7SL 5+2 73 35 250+50 880
80009 90-120 DIL35/7SIL 5+2 73 35 200+100 980
YES = HYDRAULIC TIPPING OF EXTENSIONS.

Product Description.

The carried subsoiler with a no-stop hydraulic anchor safety system, DIL series, is designed to work deep into the soil, breaking up compactions without interrupting progress, even in the presence of obstacles. Thanks to the no-stop hydraulic system, the anchors lift automatically when they encounter resistance, ensuring continuity of work. Anchor pressure is adjustable, allowing the implement to be adapted to ground conditions. The safety bolt protects the equipment from more serious damage in case of impacts. It also features hydraulic extension tilting, which facilitates maneuverability and transport. Availability in DIL 30 versions – with working depth 30 cm., suitable for tractors from 70 to 180 HP; DIL 35 – with working depth 35 cm., suitable for tractors from 50 to 200 HP; DIL 45 – with working depth 45 cm., suitable for tractors from 70 to 200 HP; DIL 65 – with working depth 65 cm., for tractors from 90 to 260 HP.
