DIL 45

(Hydraulic Security System)

The carried subsoiler with a no-stop hydraulic anchor safety system, DIL series, is designed to work deep into the soil, breaking up compactions without interrupting progress, even in the presence of obstacles. Thanks to the no-stop hydraulic system, the anchors lift automatically when they encounter resistance, ensuring continuity of work. Anchor pressure is adjustable, allowing the implement to be adapted to ground conditions. The safety bolt protects the equipment from more serious damage in case of impacts. It also features hydraulic extension tilting, which facilitates maneuverability and transport. Availability in DIL 30 versions – with working depth 30 cm., suitable for tractors from 70 to 180 HP; DIL 35 – with working depth 35 cm., suitable for tractors from 50 to 200 HP; DIL 45 – with working depth 45 cm., suitable for tractors from 70 to 200 HP; DIL 65 – with working depth 65 cm., for tractors from 90 to 260 HP.
View Full Description

Data sheet

Code. Power HP Type Teeth Frame Height Cm Prof. Cm Larg. Frame Cm Weight Kg
80010 70-90 DIL45/3 3 80 45 130 595
80011 90-120 DIL45/5 5 80 45 200 740
80012 90-120 DIL45/5L 5 80 45 250 780
80013 120-160 DIL45/7 7 80 45 250 830
80014 120-160 DIL45/7L 7 80 45 300 870
80015 120-160 DIL45/7S 5+2 80 45 200+55 870
80016 120-160 DIL45/7SI 5+2 80 45 200+55 990
80017 120-160 DIL45/7SL 5+2 80 45 250+50 990
80018 120-160 DIL45/7SIL 5+2 80 45 250+50 1120
80019 160-200 DIL45/9SI 5+4 80 45 250+140 1120
80054 160-200 DIL45/11SI 7+4 80 45 440 2000
YES = HYDRAULIC TIPPING OF EXTENSIONS.

Product Description.

The carried subsoiler with a no-stop hydraulic anchor safety system, DIL series, is designed to work deep into the soil, breaking up compactions without interrupting progress, even in the presence of obstacles. Thanks to the no-stop hydraulic system, the anchors lift automatically when they encounter resistance, ensuring continuity of work. Anchor pressure is adjustable, allowing the implement to be adapted to ground conditions. The safety bolt protects the equipment from more serious damage in case of impacts. It also features hydraulic extension tilting, which facilitates maneuverability and transport. Availability in DIL 30 versions – with working depth 30 cm., suitable for tractors from 70 to 180 HP; DIL 35 – with working depth 35 cm., suitable for tractors from 50 to 200 HP; DIL 45 – with working depth 45 cm., suitable for tractors from 70 to 200 HP; DIL 65 – with working depth 65 cm., for tractors from 90 to 260 HP.

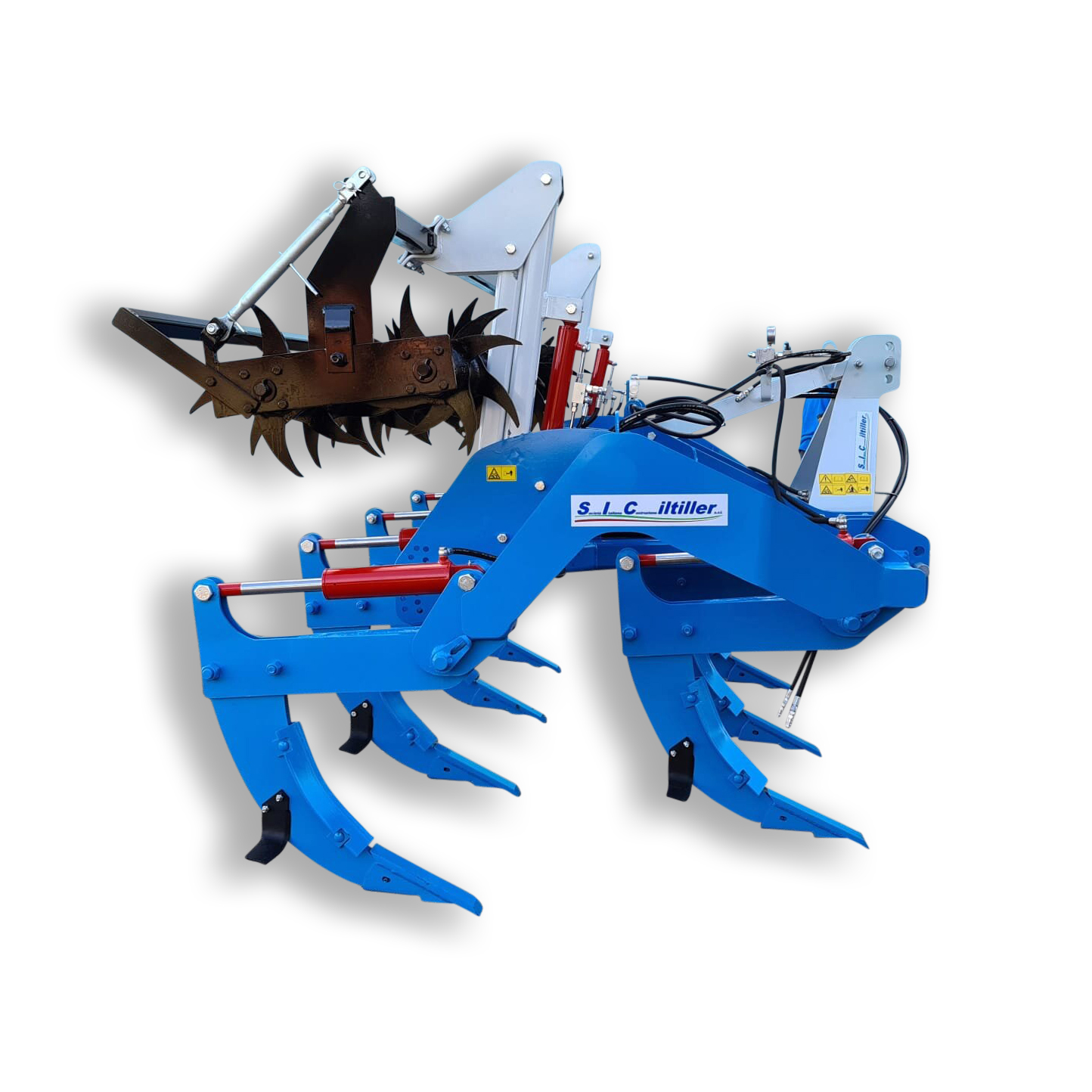

DIL 45 7 CON RULLO AUTOCARICANTE_

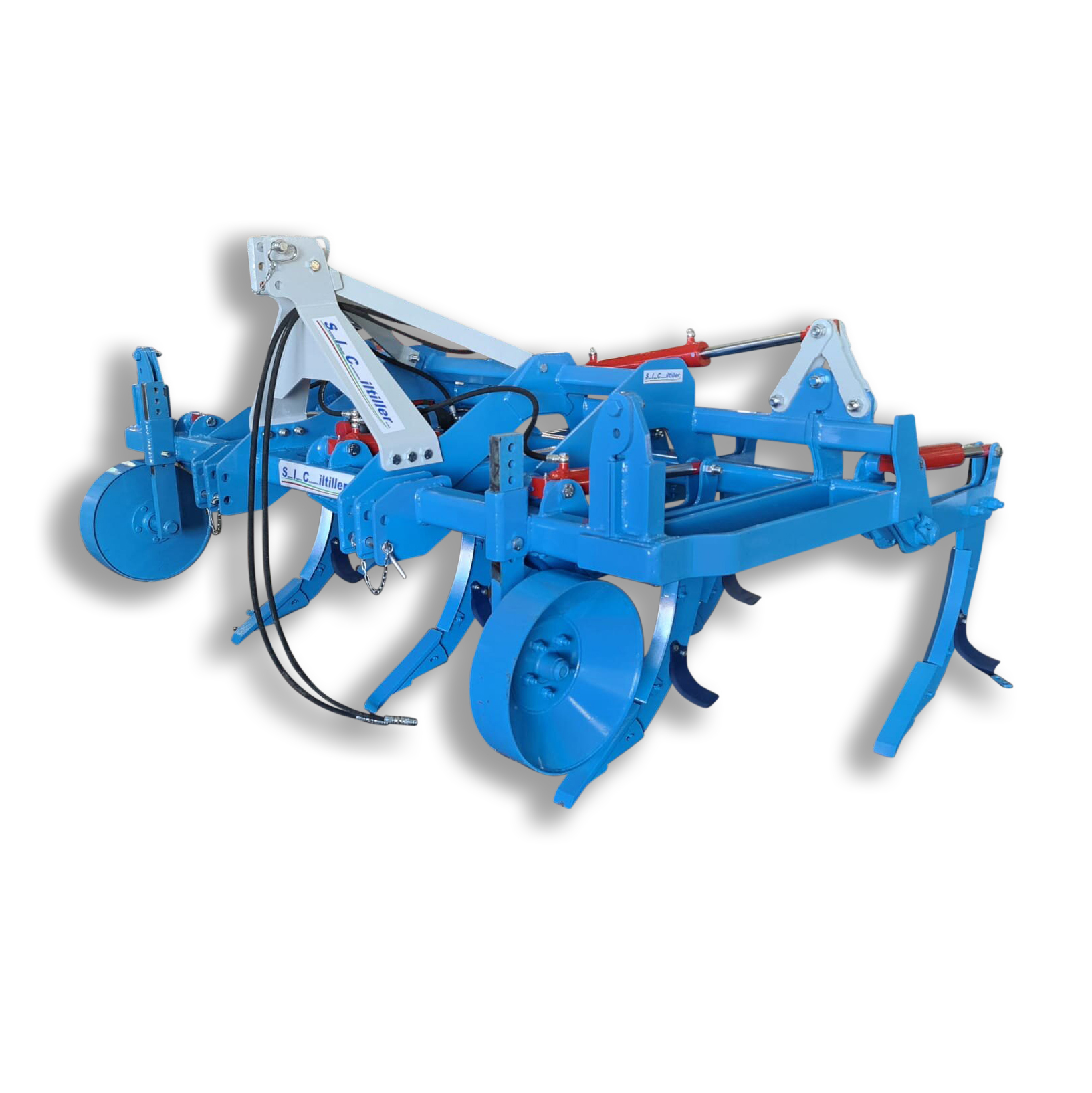

DIL 45 7SI_

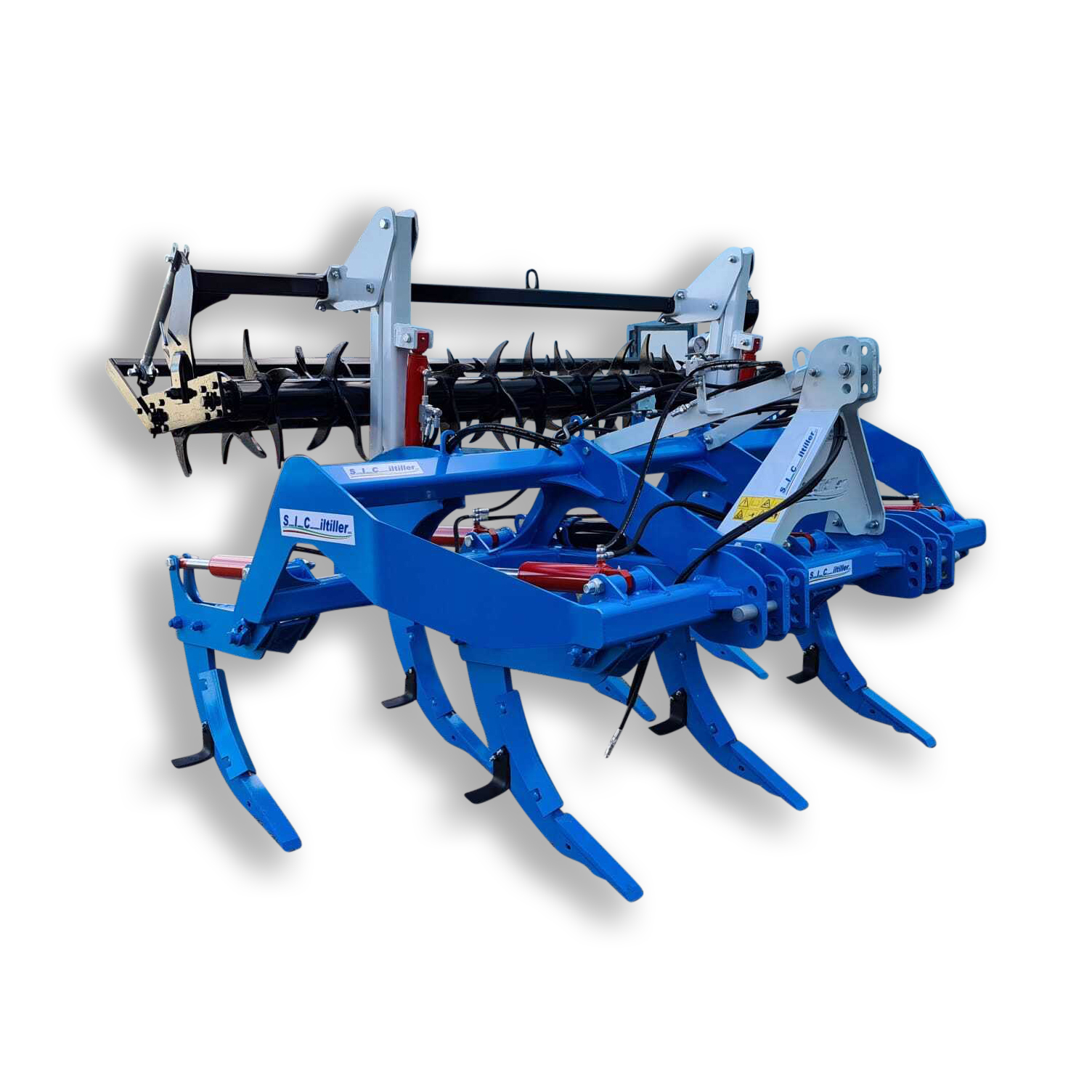

DIL 45 7 CON RULLO AUTOCARICANTE BIS_

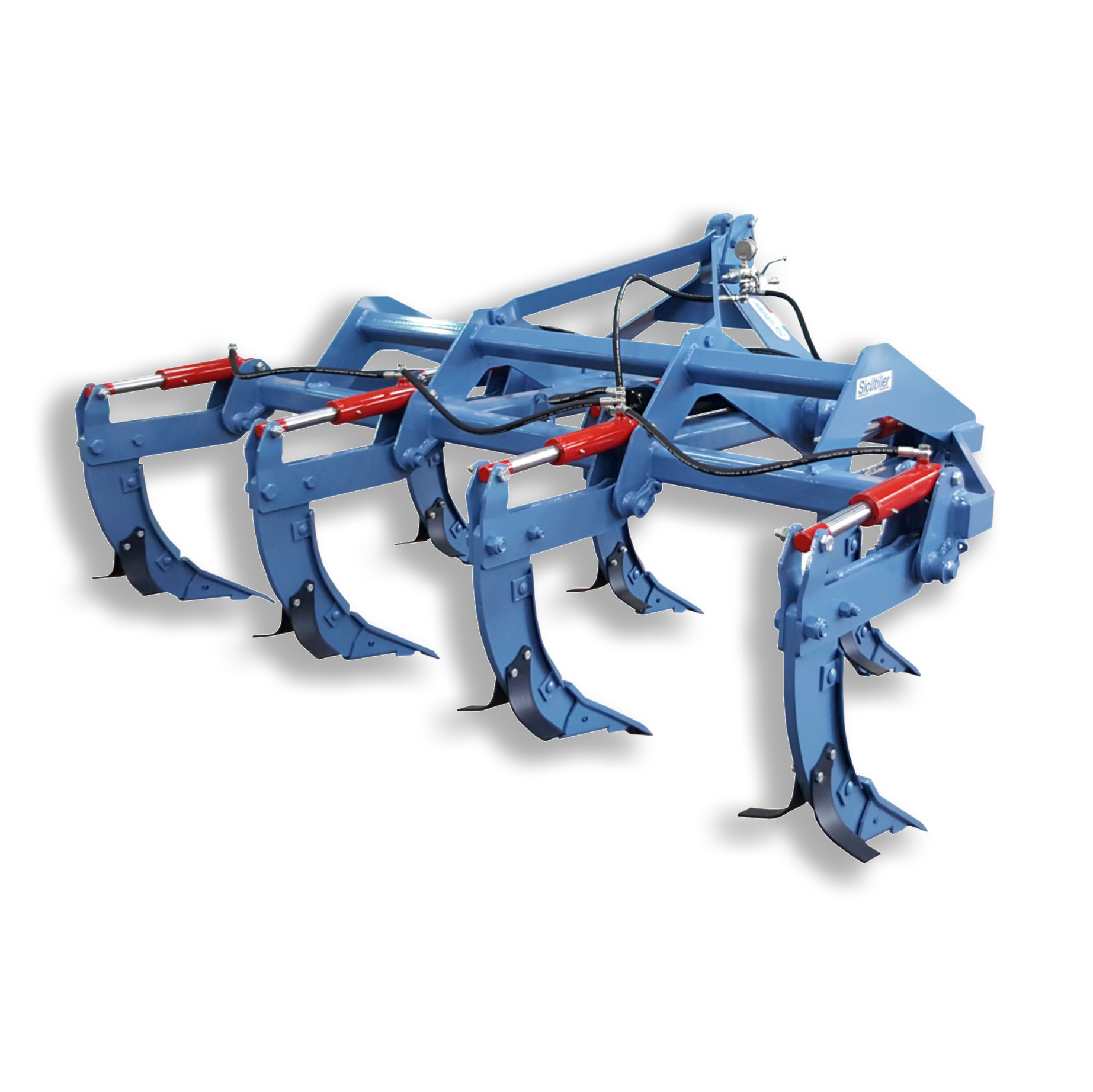

DIL 45-7
Print full pdf
